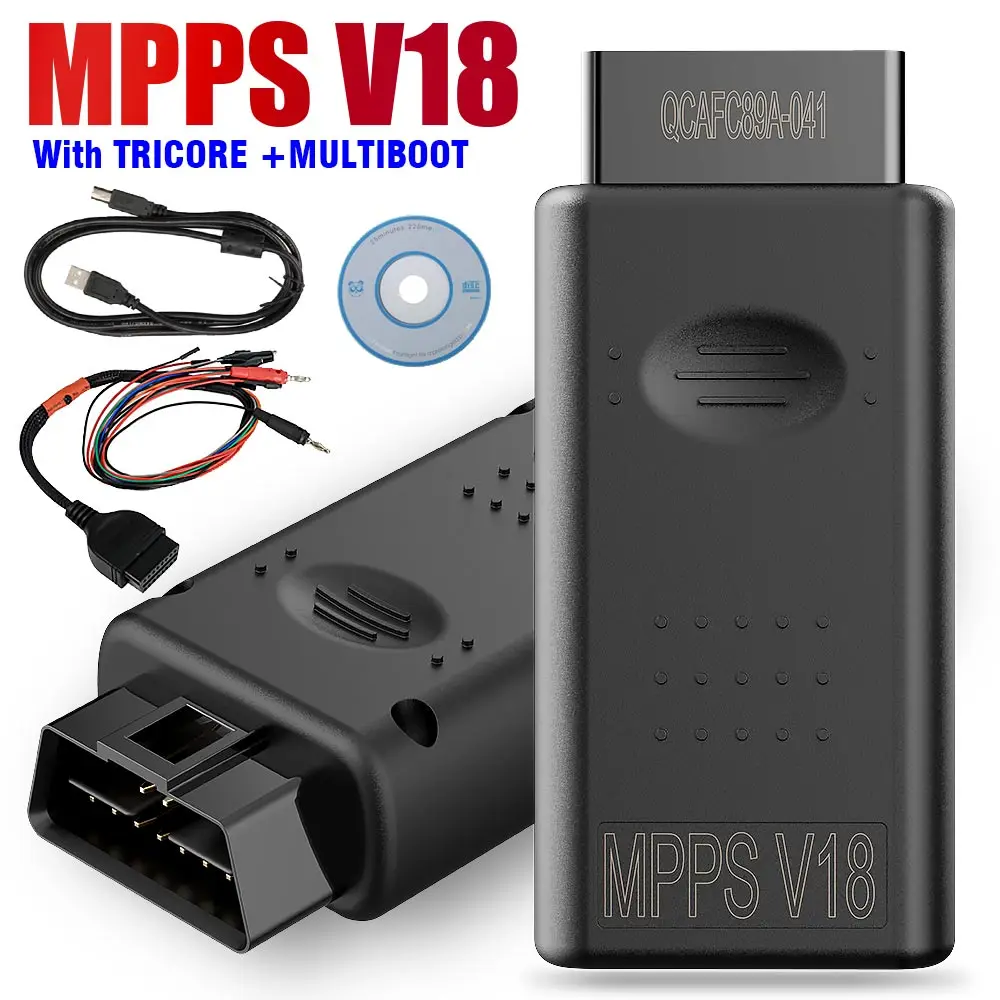

MPPS V18 MAIN + TRICORE + MULTIBOOT with Breakout Tricore Cable Firmware 1.09.03 With Checksum and ECU Recovery
MPPS V18 firmware main board PCB with NXP chip display:
MPPS V21 China Clone Customer Review/Feedback:
Opel – EDC16C9/39, PSG16 via CAN OBD read and write ok
Opel Corsa marelli 1.3cdti OK (Be sure to run as administrator using windows 7)
Read and write Opel Astra H 1.7CDTI 125PS (98002895 Z17DTR DENSO) via OBD (CAN) OK
MJD 6JF Fiat/Opel micro+ eeprom R/W OBD – K line (MPC555+95320) OK
Opel Signum PSG16 2.2CDTI read as a Zafira by OBD all OK
Opel Astra 2.0 16V CDTI BOSCH PSG16It auto checksum and read/write OK
Opel 602/3 full read/write Micro, Flash, EEPROM, via k-line & CAN ok
Opel 603 full R/W Micro, Flash, EEPROM, via k-line & CAN ok
Opel 6JO full read/write Micro & EEPROM, OK via k-line (CAN)

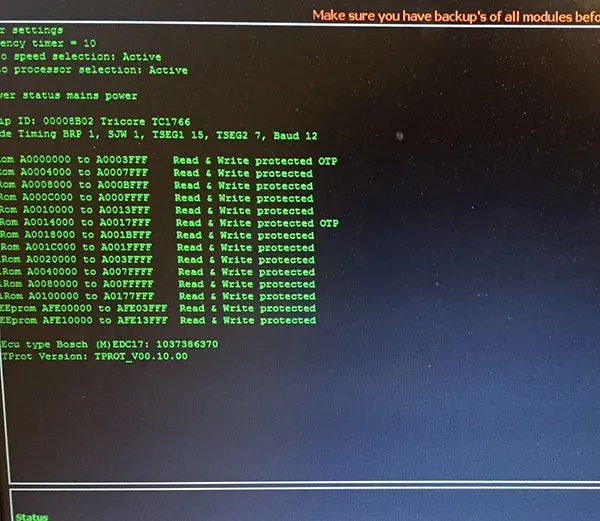

Tested with PSA MEV17.4 TC1766 Read/Write via Boot Mode okay, used pinouts from Fgtech galletto documentation.
Read and write EDC16 Peugeot Partner 1.6hdi OK (Be sure to run as administrator using windows 7)
PSA 207 EDC16C34 Can R/W ok and Ducato EDC16C39 R/W ok
Read and write Land Rover TD5, tricore read and write EDC17C10 and unlock Siemens PCR2.1ECU successfully
Ford – SID206 read and write OK
Tested BMW EDC16C31, read/write OK from windows 8 64bit
Tested EDC15P boot mode (recovery) and k-line read and write, 100% no problems
Med17.x.x works no problem. It’s working perfectly. All modules are open including tricore.
Read a Bosch ME7.9.10 from Fiat Punto T-JET 1.4 turbo via OBD with multiboot function … This tool is the only one that can read this ECU from OBD
Test mpps clone with PSG16 read/write flash, Works fine. Real direct to the pump,write for obd
MPPS V21 ECU Chip Tuning Cable FAQs:
Q:What is the meaning of ”TRICORE + MULTIBOOT” for MPPS ?
A:That means a way to dissemble the ecu, weld the boot chip point, and use ecu adapter definition to read ECU data.
MPPS supports Tricore, MultiBoot, OBD.
Q: What is the meaning of ”breakout” among MPPS Breakout Tricore Cable?
A:It is the connector adapter.
Q: Can Mpps support C167 and ST10?
A: Yes, Boot mode support for ECU’s with C167 and ST10 processors.
Q: MPPS can auto detect K-Line?
A: Yes, it support auto detection of K-Line/CAN.

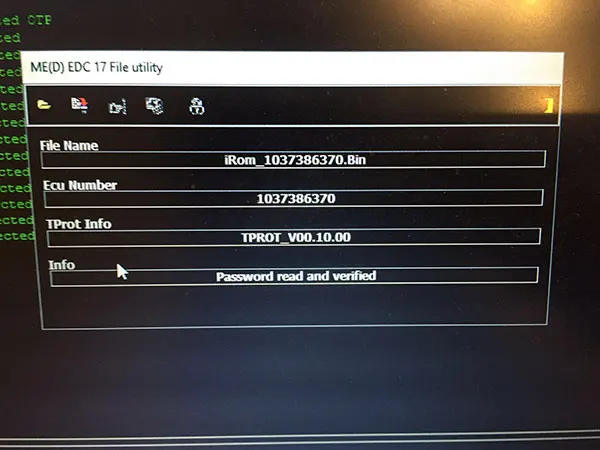

Q: What about MEDC17 TPROT level checking through mpps?
A: VAG MEDC17 TPROT level checking without opening the ECU.
Q: Any option to bypass?
A: MPPS has option to bypass and force preferred means of communication; temporary bypass of immobiliser on ME7 system.
Q: MPPS for eeprom r/w?
A: Yes, EEprom read/write functions for some ECU.
Q: Can Mpps support immo off without welding the boot chip?
A: MPPS doesn’t support immo off. And Mpps conenct to the vehicle with obd2 port, no need welding.
Q: Can Mpps read PSG16?
A: Check MPPS V18_Carlist
Q:Can MPPS be connected with internet?
A:You’d better not.
Q:Kess v2 vs MPPS v16 which is better?
A:Kess v2 is better, more features and possibilities. but mpps v16 is working very stable for a kess do PCR 2.1
