For VAG K CAN Commander 1.4 FTDI FT232RQ PIC18F25K80 OBD2 Scanner Diagnostic Tool for VAG K CAN Commander Full

  • $12.99




Features:


1.Diagnostic via CAN and Special functions via K-line.(About"Target unit not resonded!Dignostic not opened" of  doing Special functions:
Pls change"connection type to K-line"and Target (Electronic Control Unit),such as"01 Motor").

2.Covers all electronic control unitsin vehicles (diagnostic addresses from 0x01 to 0x80).
This can allow of user to investigate and diagnosis some new units untouchable for remaining diagnostic tools. Functions are under for CAN-TP2.0 protocol.(KWP2000)

3.Manual definition of running diagnostic session C not like remaining diagnostic tools always standard diagnostic session 0x89. Function is under for CAN-TP2.0 protocol.(KWP2000).

4.Broadcast diagnostic request disable normal communication,clear DTCs, Logistic (transport) mode,....Functions are under for CAN-TP2.0 protocol.(KWP2000).

5.Allows managing of brand new units (and immobilizer units) where is allowed programming of PIN, SKC, BGW, for MAC. Functions are under for CAN-TP2.0 protocol.(KWP2000).

6.Most of popular diagnostic requests identifications, coding,adaptations, DTCs functions are under for CAN-TP2.0 protocol.(KWP2000).

7.Compatible with: Win XP and WIN 7 32bit.

8.Pls leave message to me if the CD has broken.we will send the software link to u.
9.Please close the anti-virus software to install the softwae.
10.It only support our CD'S software, please do not use the original software to test.Otherwise, there is no warranty for you!
11.Support the car model before 2007,more details,pls look at the car list.

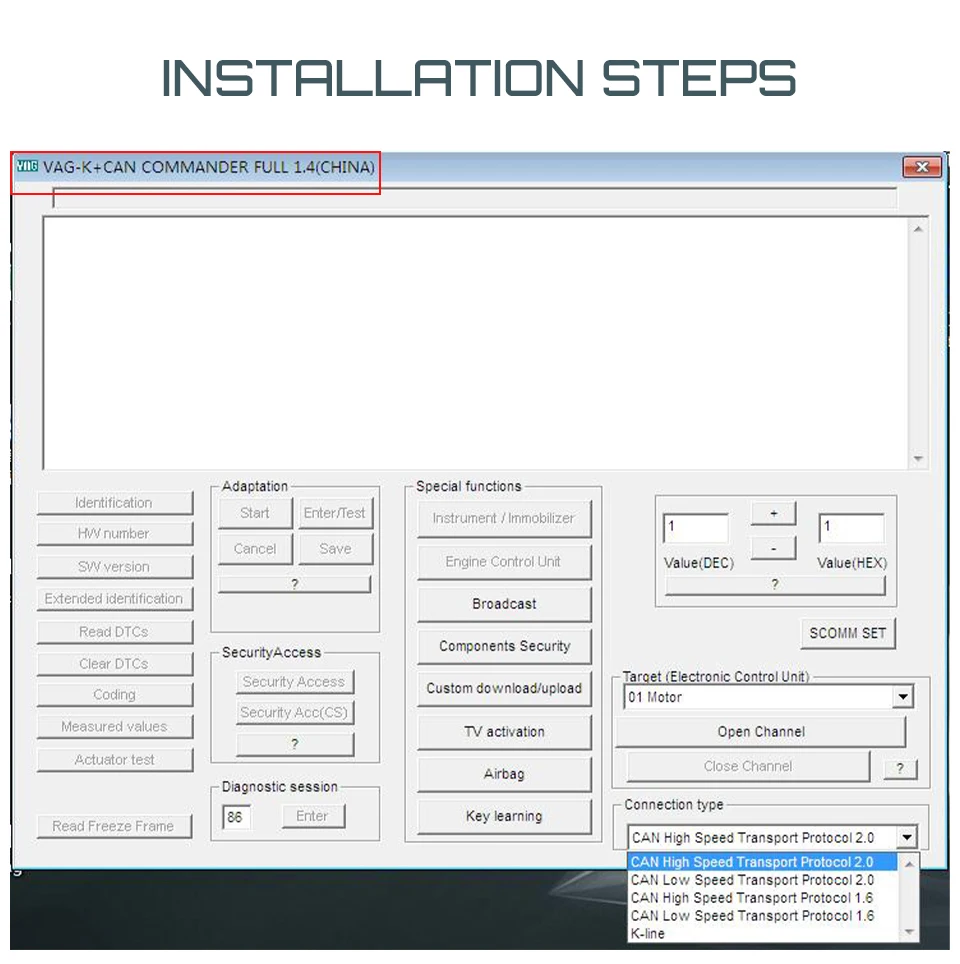

12.About computer  does not recognize the device:
Computer--Manager--Computer Manager --Device manager-- search the device directly--Driver install well.


Function:(underfor CAN-TP2.0 protocol.(KWP2000).

1.Odometer correction in instrument clusters and EDC15x.
2.Read Security Access Code/Login WFS.
3.Read/program immobilizer data.
4.Read/write EEPROM from instrument cluster/immobilizer. All supported clusters CAN/K.
5.for VAG MMI TV Activation.
6.Read/Write EEPROM of Engine Control Units for BOSCH for VAG-EDC15x,for VAG-ME7.1.1,for VAG-Cartronic ME7.8,for Porsche.
7.Key learning buttons for easy usage (not needed security code). Can do component security authorization.
8.Key learning for Por-sche CAYENNE (not needed security code) K+CAN.
9.Custom memory reading from different units like ECUs, EZS-Kessy and so.
10.Reading flash memories EDC16x, EDC15x, ME7x, MED951, MED751 (with next update will be possible programming of flash memories.
11.Crash data clear in airbag units.

List of vehicles covered from function odometer change via OBDII:

for Adi Q7 (CAN) up to 2007.
for Adi A2 (K)up to 2007.
for Adi A3 (CAN) up to 2007.
for Adi A3 VDO/M73 (K) up to 2003.
for Adi A4 VDO/M73 (K) up to 2007.
for Adi A4 for BOSCH - RB4 clusters (CRYPTO eeproms R/W by OBDII) up to 2007.
for Adi A6 VDO (K) up to 2007.
for Adi A6 (CAN) up to 2007.
for Adi Allroud (K) up to 2004
for Adi A8 (K) VDO93xx up to 2007.
for Adi A8 (CAN) up to 2007 !!!
for Adi TT (K) up to 2007.
for Seat for Alhambra (K) up to 2007.
for Seat for Altea (CAN) up to 2007.
for Seat for Arosa (K) up to 2007.
for Seat for Cordoba after 1999 (K) up to 2007.
for Seat for Ibiza VDO after 1999 (K) up to 2007.
for Seat for Leon (K+CAN) up to 2007.
Seat for Toledo (K+CAN) up to 2007.
for Skda Octavia (K) up to 2007.
for Skda Octavia II (CAN) up to 2007.
for Skda Superb (K) up to 2007.
for Skda Roomster (K) up to 2007.
for Skda Scout (CAN) up to 2007.
for Skda Fabia (K) up to 2007.
for WW Bora (K) up to 2007.
for WW Beetle (K) up to 2007.
for WW Caddy (CAN) up to 2007.
for WW for EOS (CAN) up to 2007.
for WW Golf4 VDO/Motometer/for BOSCH RB up to 2007.
for WW Golf5 VDO (CAN) up to 2007.
for WW Golf5 VISETEON up to 2007.
for WW Crossgolf (CAN) up to 2007.
for WW Individual (CAN) up to 2007.
for WW Jetta (K+CAN) up to 2007.
for WW Passat B5/B6 (K+CAN) up to 2007.
for WW Polo VDO/Motometer (K) up to 2007.
for WW Sharan (K) up to 2007.
for WW T4/T5 VDO (K) up to 2007.
for WW Touaran VDO (CAN) up to 2007.

List of vehicles covered from function security access code/login reading via OBDII:

for Adi A2 up to 2007.
for Adi A3 (CAN) up to 2007 !!!
for Adi A3 VDO/M73 up to 2003 (K)
for Adi A4 VDO (K) up to 2007.
for Adi A4 for BOSCH (K) up to 2001.
for Adi A4 after 2000 - up to 2007.petrol engines >= 1.8
for Adi A6 VDO (K) up to 2007.
for Adi A6 (CAN) petrol engines up to 2007.
for Adi Allroad (K) up to 2004
for Adi Allroad (CAN) petrol engines up to 2007.
for Adi A8 up to 2001
for Adi A8 from 2001 to 2002 2.5TDI
for Adi A8 (CAN) 2003 up to 2007.+ petrol
for Adi TT (K) up to 2007.
for Adi Q7 petrol engines up to 2007.
for Seat for Altea (CAN) up to 2007.
for Seat for Cordoba after 1999 (K) up to 2007.
for Seat for Ibiza (VDO) after 1999 (K) up to 2007.
for Seat for Leon (K+CAN) up to 2007.
for Seat for Toledo (K+CAN) up to 2007.
for Skda for Octavia up to 2007.
for Skda for Octavia II (CAN) up to 2007.
for Skda for Superb up to 2007.
for Skda for Roomster up to 2007.
for Skda for Scout (CAN) up to 2007.
for Skda for Fabia up to 2007.
for WW Bora up to 2007.
for WW Beetle up to 2007.
for WW Caddy (CAN) up to 2007.
for WW for EOS (CAN) up to 2007.
for WW Golf4 VDO/Motometer/for BOSCH RB up to 2007.
for WW Golf5 VDO (CAN) up to 2007.
for WW Crossgolf (CAN) up to 2007.
for WW Individual (CAN) up to 2007.
for WW Jetta (K+CAN) up to 2007.
for WW Passat B5 (K) B6(CAN) up to 2007.
for WW Polo5 up to 2007.
for WW Sharan after year 2000 up to 2007.
for WW T5 up to 2007.
for WW Phaeton petrol up to 2007.
for WW Touareg petrol up to 2007.
for WW Touaran VDO (CAN) up to 2007.
for PORSCHE Cayenne (CAN/K) up to 2007.
Current version 1.4 covers for WW/ for SEAT/ for SKDA (CAN) up to September 2006 while for ADI covered up to 2007



1pc for VAG K+CAN Commander 1.4 Cable
1pc CD Drive
